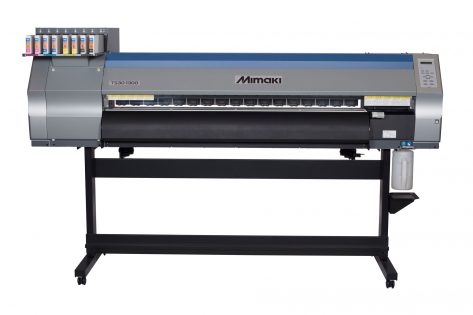

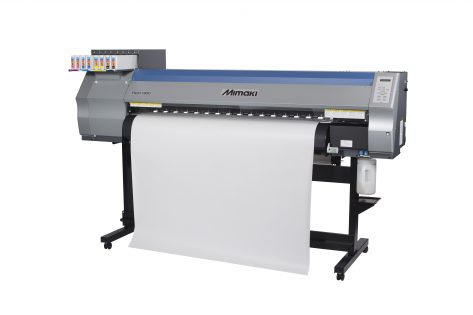

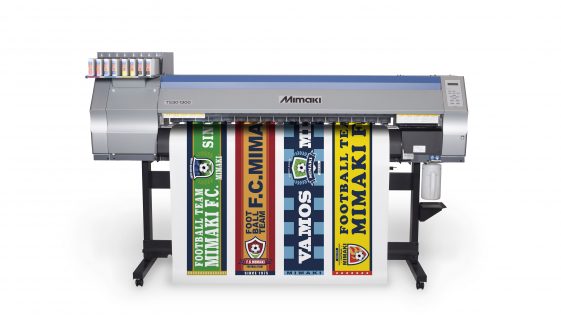

TS30-1300
Entry Model Sublimation Transfer Printer
Designed specifically with ease of use and versatility in mind, the Mimaki TS30-1300 is a simple, entry-level sublimation transfer printer equipped with a carefully selected set of features that allows you to bring high-mix, low-volume print productions in-house. Sublimation transfer printing is widely utilised for textile and sportswear applications due to the elasticity and quick-drying capability of polyester material and in the growing market for soft signage applications, such as flags, retail in-store banners, and tapestries.
|
|
|
|
|
Create…
Fashion apparel, Personalised items, printing on polyester-coated objects, such as mugs, coasters, mousepads, phone covers, photo frames, flags, banners and tapestries, POS items and more!
Specifications of TS30-1300
| Printhead | On-demand piezo head x 1 (8 lines of 180 nozzles) |
| Print resolution | 540, 720, 1080 dpi |
| Ink droplet size | Minimum: 4 pl / Maximum: 14 pl |
| Head gap | 2 mm / 3 mm / 4 mm / 5 mm (*1) |
| Ink type | Sb54 sublimation Ink |
| Ink set and colour | 4-colour (Bl, M, Y, K) / 6-colour (Bl, M, Y, K, Lbl, Lm) |
| Package size | Ink cartridge (440 cc) / Ink pack (2L) (*2) |
| Roll outer diameter | Φ180 mm (7 in.) or less |
| Paper core inner diameter | Φ50.8 mm (2 in.) / 76.2 mm (3 in.) |
| Maximum wedia width | 1371 mm (54 in.) |
| Maximum print width | 1361 mm (53.6 in.) |
| Media thickness | 1 mm or less |
| Media weight | 25 kg (55.1 lb.) or less |
| Media cutter | Installed |
| Dimensions (W x D x H) | 2289 x 739 x 1424 mm (90.1 x 29.1 x 56.1 in.) |
| Weight | 145 kg (319.7 lb.) |
| Power supply | Single phase AC100 – 120V ±10%, AC220 – 240V ±10%, 50/60Hz ±1Hz, 15A or less |
| Power consumption | 300W or less |
| Interface | USB 2.0, Hi-Speed |
| Certifications | VCCI class A / UL60950-1 / FCC class A / CE Marking (EMC and Low voltage directive) / CB |
All TS30-1300 inks are ECO PASSPORT by OEKO-TEX® certified.
Features of TS30-1300
Easy-to-operate entry model that can be used at ease
This is an entry model of the sublimation transfer printer that features only a selected set of functions so that you can readily use it. The printer is bundled with Mimaki’s RIP software, RasterLink6, enabling you to start printing right after introducing it. It also comes with Mimaki’s Sb54 ink, which offers stable ink ejection by lowering the settlement property of dye. Even first-time users can use the sublimation transfer printer at ease.
Printing on necessary items in necessary quantities as needed
TS30-1300 realizes the in-house production of high-mix low-volume print products, such as textile or sports apparel prototyping or the creation of customized items. Performing the printing jobs, formerly outsourced to a subcontractor, the in-house production reduces the lead time of sample delivery to the client. Additionally, when the client requests a change in the design, the new design can be printed and delivered immediately without asking a subcontractor. The TS30-1300 enhances presentation ability and increases business opportunities.
4-color ink set offers a printing speed of up to 19.6 m2/h*
* 19.6 m2/h (4-color / Draft mode/ 540×720 dpi / 2 pass)
– Realizing high-mix, low-volume production or sample creation within your company enables you to present your product to your client quickly.
Sublimation transfer printer enhances product presentation ability
Creation of an apparel sample
Polyester fabric is now widely used in the textile and apparel industry. With the TS30-1300, you can print original full-color images not only on clothes but also on such items as bags, scarves, tights, and socks. Designs with variables, such as player numbers and names on sports uniforms, can also be printed easily just by editing the data.
Customized items
Images can be printed on polyester-made banners, towels, T-shirts, handkerchiefs, mouse pads, neck straps, cushions, etc. as well as on polyester-coated mugs, glasses, coasters, etc. With a single printer, you can create many different customized items, which helps broaden the breadth of your business.
Print Speeds
Note: Print modes listed on this brochure are included in the printer’s specifications. Profiles are created by selecting print modes based on the characteristics of each media. However, profiles are not prepared for all media and print modes. If a profile is not provided, it can be created using Mimaki Profile Master.
All TS30-1300 inks are ECO PASSPORT by OEKO-TEX® certified.
Downloads
Brochure
[wpmdc_download id=14762]
